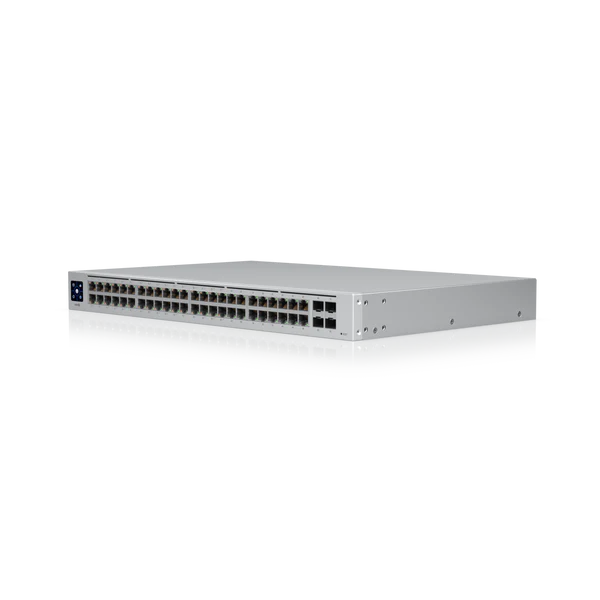

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.
Features:
- (32) GbE, PoE+ RJ45 ports
- (16) GbE RJ45 ports
- (4) 1G SFP ports
- 195W total PoE availability
- 1.3" LCM color touchscreen with AR switch management
Managed and configured by the UniFi Network Controller with UniFi mobile app support, this switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 285 x 43.7 mm |
| Weight | Without mounting brackets: 4.52 kg With mounting brackets: 4.61 kg |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (48) 10/100/1,000 RJ45 ports (4) 1G SFP Ethernet ports |
| Management interface | Ethernet In-Band |
| Total non-blocking throughput | 52 Gbps |
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.38 Mpps |
| Power method | 100—240V AC, 50/60 Hz, universal input |
| Power supply | AC/DC, internal, 240W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 45W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP+ | Link/activity |
| PoE | |
| Total available PoE | 195W |
| PoE interfaces Ports 1-32 |
PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Max. PoE wattage per port by PSE PoE+ |
32W |
| Voltage range PoE mode | 44—57V |
| Voltage range PoE+ mode | 50—57V |
