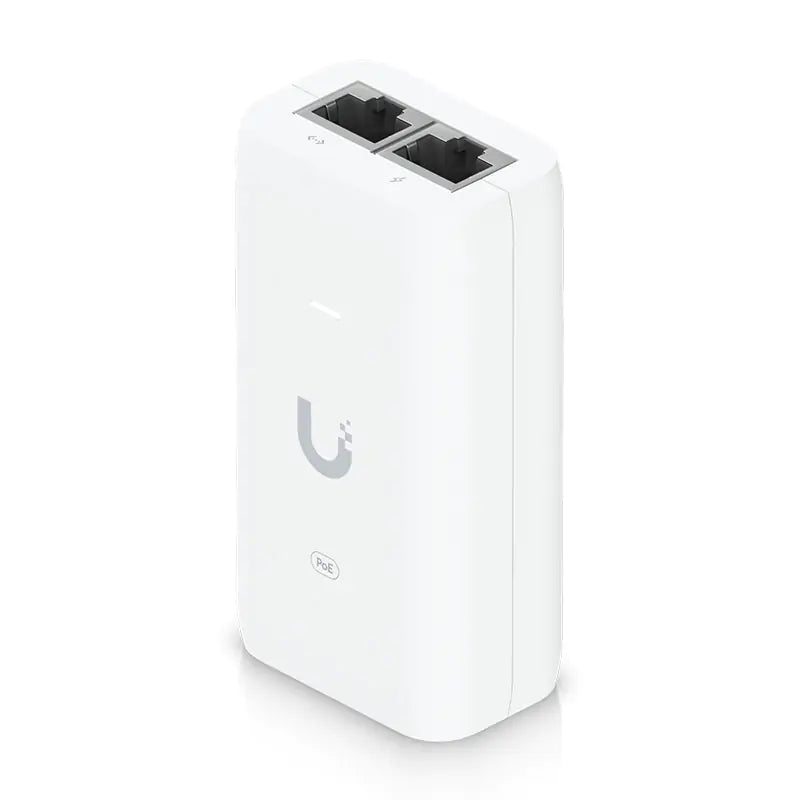

Compact 15W Power over Ethernet adapter delivering 48V DC power to compatible network devices. Features Gigabit LAN connectivity with 802.11AF compliance for reliable performance. Includes comprehensive surge protection with difference and common mode safeguards, rated for 1500A peak discharge.
Operates across standard 100-240V AC input with 84.25% efficiency.
Compact design measures 86 x 46 x 33mm and weighs just 100g, making it ideal for space-constrained installations.
SPECIFICATIONS:
|
Dimensions |
86 x 46 x 33 mm |
|
Weight |
100 g |
|
Output voltage |
48V DC @ 0.32A |
|
LAN activity indicator |
No |
|
Gigabit LAN port |
Yes |
|
Remote reset capability |
No |
|
Reset button |
No |
|
Rated voltage |
100—240V AC @ 50/60Hz |
|
Input current |
500mA max. |
|
Inrush current |
<100A peak at 25°C |
|
Efficiency |
84.25+% |
|
Output ripple |
200mV p-p |
|
Switching frequency |
65 kHz |
|
Line regulation |
≤ 3% |
|
Load regulation |
≤ 5% |
|
2-pair powering |
Pins 4, 5 (+) and 7, 8 (-) |
|
4-pair powering |
No |
|
AC connector |
IEC-320 C6 |
|
Data In / PoE |
RJ45 shielded socket |
|
Surge protection |
Difference and common mode |
|
Clamping protection |
11V data, 60V power |
|
Max. surge discharge |
1500A (8/20 μs) power |
|
Peak pulse current |
36A (10/1000 μs) data |
|
Shunt capacitance |
<5 pF data |
|
Response time |
<1 ns |
|
Ambient operating temperature |
0 to 40° C |
|
Storage temperature |
-30 to 70°C |
|
Ambient operating humidity |
10 to 95% noncondensing |
|

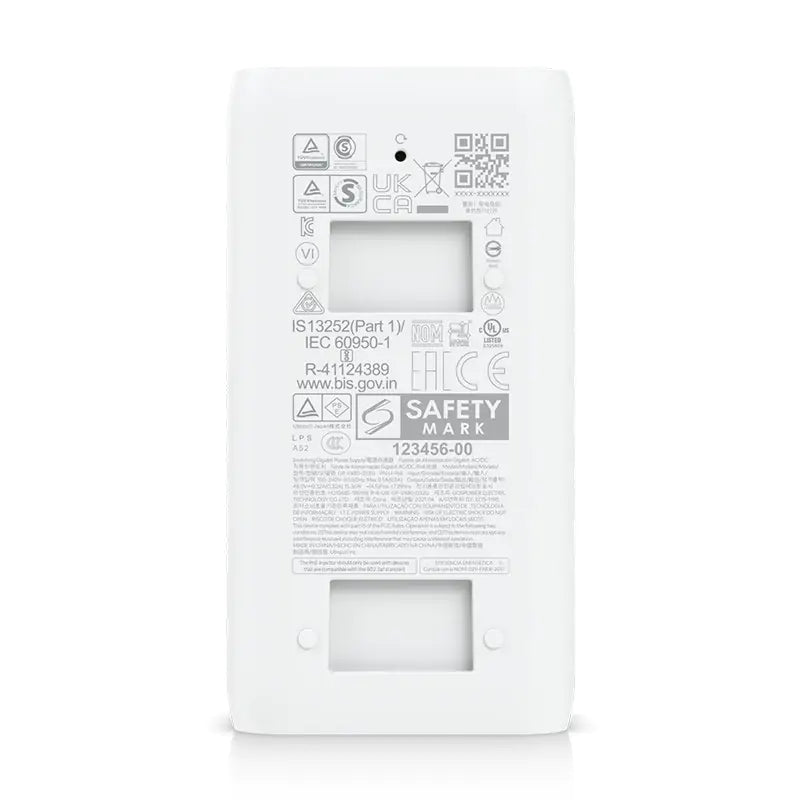

Certifications |
CE, FCC, IC, UL |
